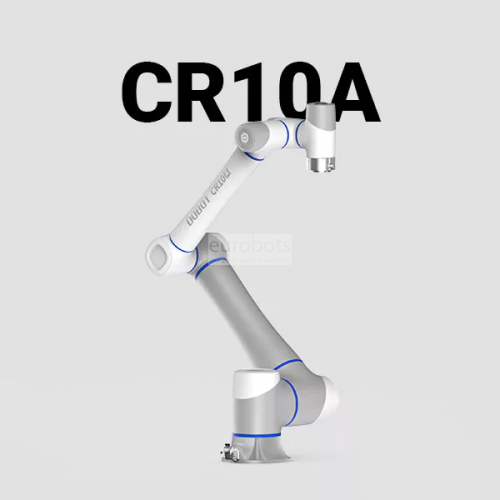

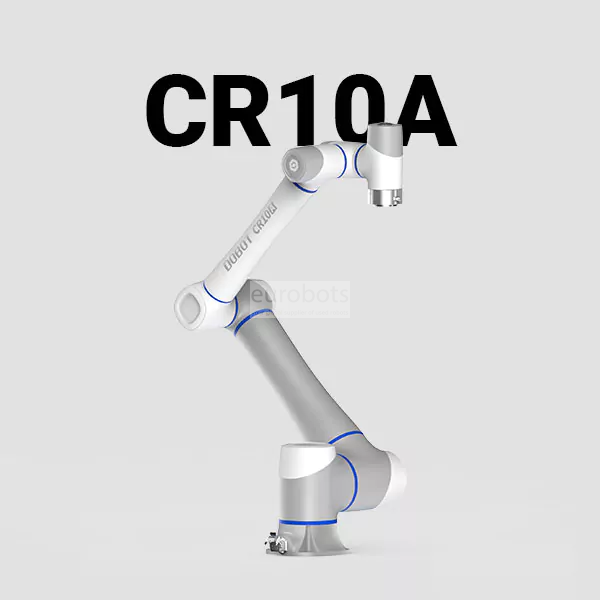

DOBOT CR10A cobot

In stock

Informações
Especificações

The Dobot CR10A is a powerful and flexible collaborative robot designed for applications that require a larger reach and higher payload capacity.

With a payload of 10 kg and a working radius of 1300 mm, the CR10A is ideal for palletizing, material handling, assembly, gluing, machine tending, and quality inspection, making it a great fit for industries such as manufacturing, logistics, and automotive.

The robot features a plug-and-play design, allowing for fast deployment with a wide range of accessories from the Dobot ecosystem. It includes a user-friendly graphical interface, supporting block programming (similar to Scratch) and scripting with LUA, while also offering compatibility with programming languages via its API (C, C#, Python, Kotlin, etc.). Additionally, it can be controlled through smartphones, tablets, and computers.

The Dobot CR10A is designed for rapid setup, with an installation process that takes around 20 minutes, and full operational capability in under an hour.

Weight		40 kg
Maximum Payload		10 kg
Working Radius		1300 mm
Maximum Linear Speed		2 m/s
Range of Motion	J1	±360°
	J2	±360°
	J3	±160°
	J4	±360°
	J5	±360°
	J6	±360°
Maximum Joint Speed	J1/J2/J3	150° /s
Maximum Joint Speed	J4/J5/J6	223° /s
End-Effector I/O Interface	DI/DO	2+2
End-Effector I/O Interface	AI/AO	0
Communication Interface	Communication	RS485
Controller I/O	DI	24
	DO/DI	24
	AI/AO	2/2
	ABZ Incremental Encoder	1
Repeatability		±0.03 mm
Communication		TCP/IP, Modbus, Profinet, ethernetIP, Wi-Fi
IP Rating		IP54
Noise		70 dB(A)
Temperature Range		0°C ～ 50°C
Power Consumption		350W
Installation Orientation		Any angle
Cable Length to Control Box		5m
Materials		Aluminum alloy, ABS plastic

Funções

Carga e descarga de peças , Manuseio de peças , Polimento , Medição , Montagem de peças , Colagem - colagem adesiva , 3C Electronics , Advanced Manufacturing , Education

Fotos

Vídeo

Diagramas
